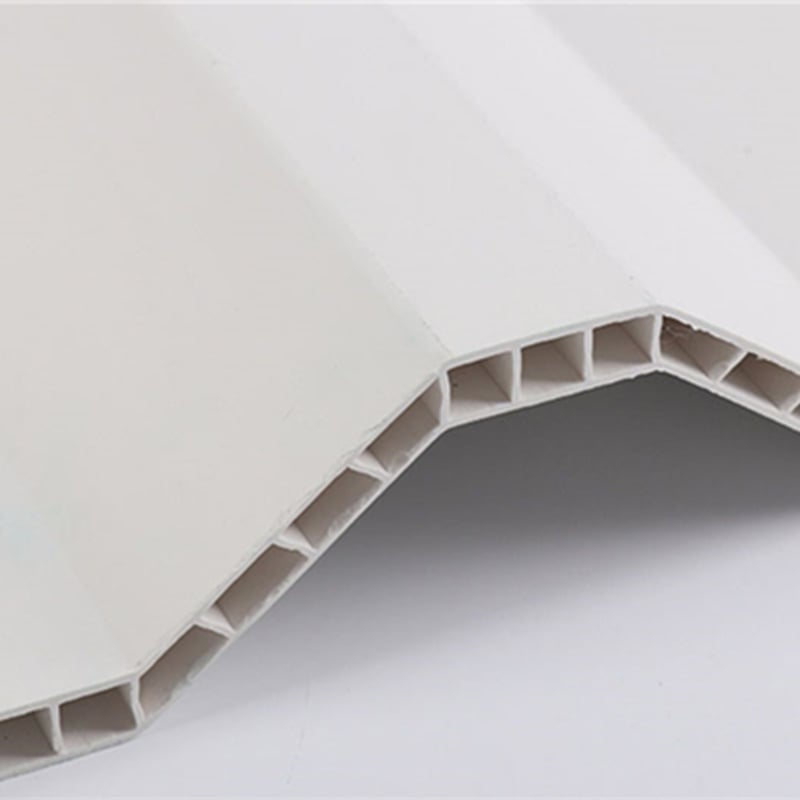

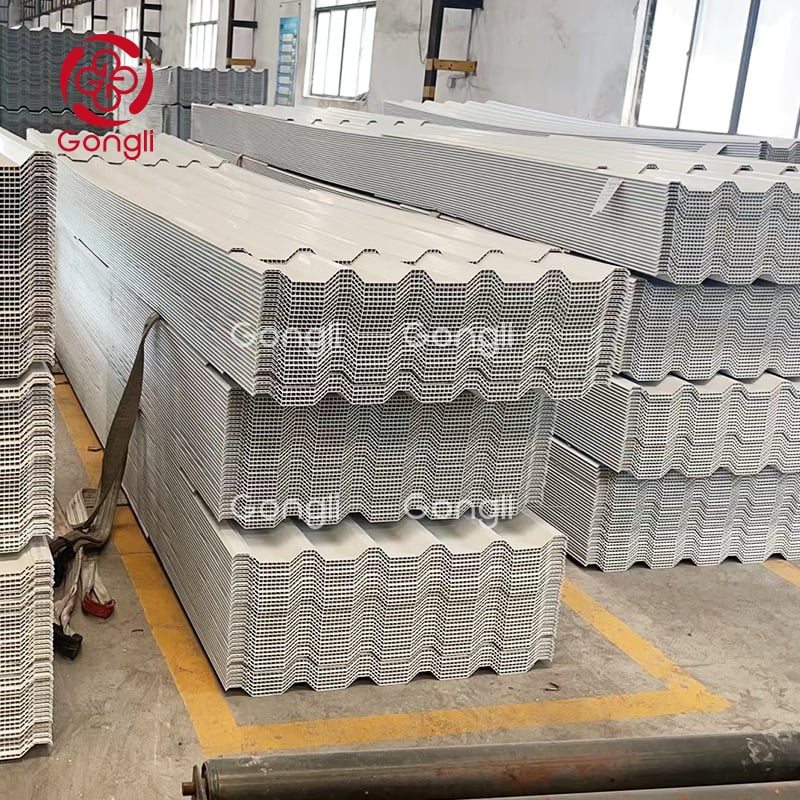

PVC Hollow Sheets are designed for both wall and ceiling applications, providing exceptional insulation and durability. They're ideal for maintaining a dry environment with easy installation.
Product name |
PVC hollow roof sheet |
Raw materials |
PVC, UPVC |
Surface materials |
ASA |
Total Width |
885mm |
Efficient Width |
830mm |
Length |
Max length in 40ft container 11.8m Max length in 20ft container 5.8m |
Thickness |
10mm |
Quantity |

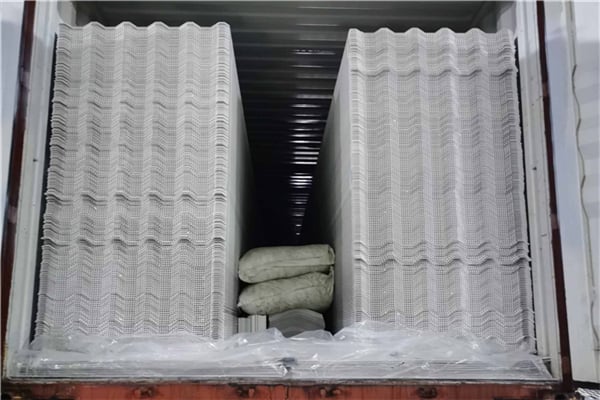

4900sqm / 40HQ |
Purlin distance |
Max 1.2m |
Insulation effect |
reduce 28% temperature |
Shape |
trapezoidal wave |
Color |
white, blue, green, gray,brick red, yellow, etc. |
Color lasting |
30 years with ASA |
| Warrant period | 10 years |
| Product life | About 20 years, even more longer without man-made distruction. |
Layers |
3-4 layers |
Features |
1.Excellent heat resistant and Anti-corrosive 2. The variety of colors and patterns |
Application |
Farm house, warehouse, chemical factory, wall cladding, and some other projects, etc. |
Test Report of pvc twinwall panel
NO. |
Test Item |
Test Method |
Test Condition |
Test Result |
|
1 |
UV Exposure |
ASTM G154-12 ASTM D2244-11 |
ASTM G154-12 cycle 1, Lamp type:UV340, Exposure period:200h |
ΔE*ab=0.5 |
|
2 |
Tensile Strength |
ASTM D638-10 |
Testing speed: 50mm/min |
26Mpa |
|
3 |
Flexural Strength |
ASTM D790-10 Procedure A |
Testing speed: 1.3mm/min Span:48mm |
52Mpa |
|
4 |
Impact Resistance |
ASTM D5420-10 |
Geometry GE(Ø12.7mm) Impact Weight:0.9kg |
Mean Failure energy:4J |
|
5 |
High Temperature Resistance |
60℃, 6h |
No visible change |
||
6 |
Low Temperature |
-35℃, 6h |
No visible change |
||
7 |
Chemical Resistance |
70% Ethanol solution(v/v), Immersion test, 23℃, 2h |
No visible change |
||
10% NaOH solution Immersion(m/m), test, 23℃, 2h |
No visible change |
||||
Saturated NaCL solution(m/m), Immersion test, 23℃, 2h |
No visible change |
||||
8 |
Thermal Conductivity |
ASTM C518-10 |
Mean Temperature 25.58℃ |
Temperature difference 9.36℃ |
Thermal Conductivity 0.071[(W/(M.K)] |
9 |
20mm Vertical burning test |
UL94-2013 Section 8 |
Specimen: 129×12.5×3.0mm |
V-0 |
|
10 |
Sound Insulation |
Compare with metal roof tile |
30dB lower |
||
11 |
Hard to Burn |
B1 Grade |
Oxygen index 32.4 |
||
Perfect for landscape projects, these lightweight panels are suitable for enhancing the aesthetic and functionality of walls and ceilings in structures that demand superior insulation and protection against water damage.
